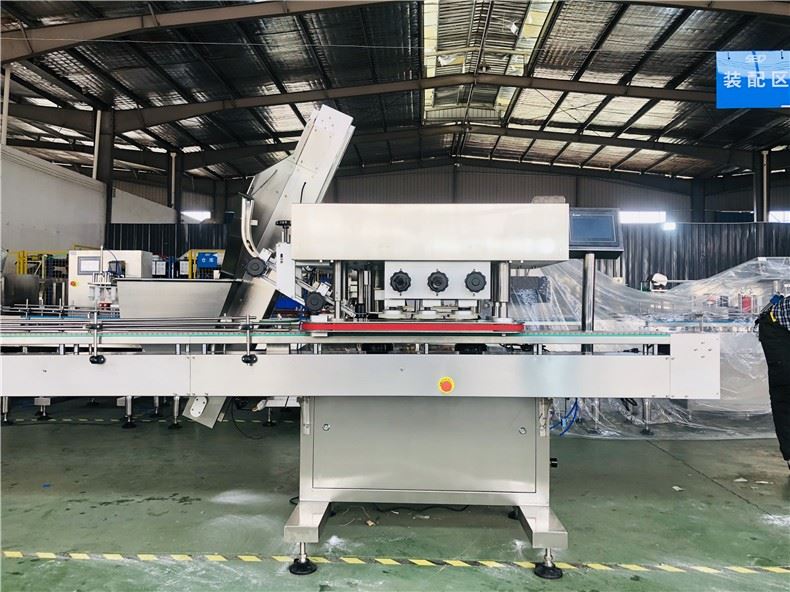

Screw Capper

Introduction

KY-XG02 screw capping machine is stored in a low-level stainless steel hopper, and is transferred to the bottle cap blanking chute through a frequency conversion lifting belt, and the anti-cap removal is completed by using the principle of the center of gravity of the bottle cap. The screw capper is hung on the bottle mouth by the cap hanging device. The bottle is held by two synchronous clamping belts to keep the bottle rotating and move straight forward. The automatic bottle capping machine is rotated by three groups of six cap wheels to complete the cap rotation. With the mechanical torque adjustment function, the screw cap is just right.

Applicable bottle

Features

1. With dual functions of capping and twisting, it is more effective for some bottles that are difficult to cap.

2. Intelligent connection, strong compatibility. It can be randomly and intelligently connected with

customers' front and rear production equipment, without the need for professional care, greatly saving labor costs.

3. The automatic bottle capping machine is suitable for various specification and shape of plastic bottles, such as round bottle, square bottle, flat square bottle and other special shape of bottles.

4. The tightness of capping and twisting mechanism can be adjusted, 100% ensure the bottle, cap won't be damaged and no scratched.

5. The auto capping machine is easy to change different size of bottle and cap, only need 10 minutes to replace the spare parts.

6. With the rejection function of reverted bottles and caps.

7. Swing type twisting rubber wheel, it can control the twist force accurately, which greatly reduce the wear of rubber wheel.

8. Self-diagnose errors and stop working to make alarm at errors and missing bottles, caps. It is also have the rejection system without aluminum foil after capping.

9. Equipped with lifting motor, which can realize the main machine automatically lifting.

Technical parameter

Details

Capping part

● Consists of two timing belts and three sets of six capping wheels;

● With mechanical torque adjustment function, the cap is just right;

● The parts that are not in contact with the bottle cap use non-toxic synchronous belt and non-toxic wear-resistant silicone;

● French Schneider inverter, stable and easy to operate, longer service life.

Storage caps, feeding caps and drop caps:

● The upper part adopts a step-type lifting belt, which has a fast feeding speed and low noise;

● Digital display adjustment hand wheel, changing the variety is very convenient and quick;

● The cap-falling structure has the function of automatic rejection of the reverse cap (the principle of shifting the center of gravity of the bottle cap, plus an air blowing method), to ensure that the bottle cap smoothly enters the slideway and avoids blocking.
