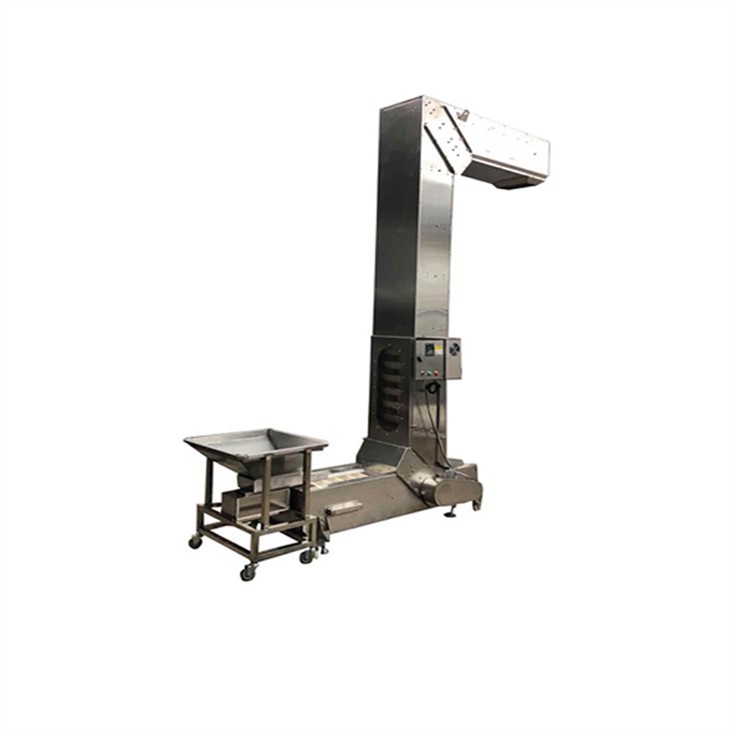

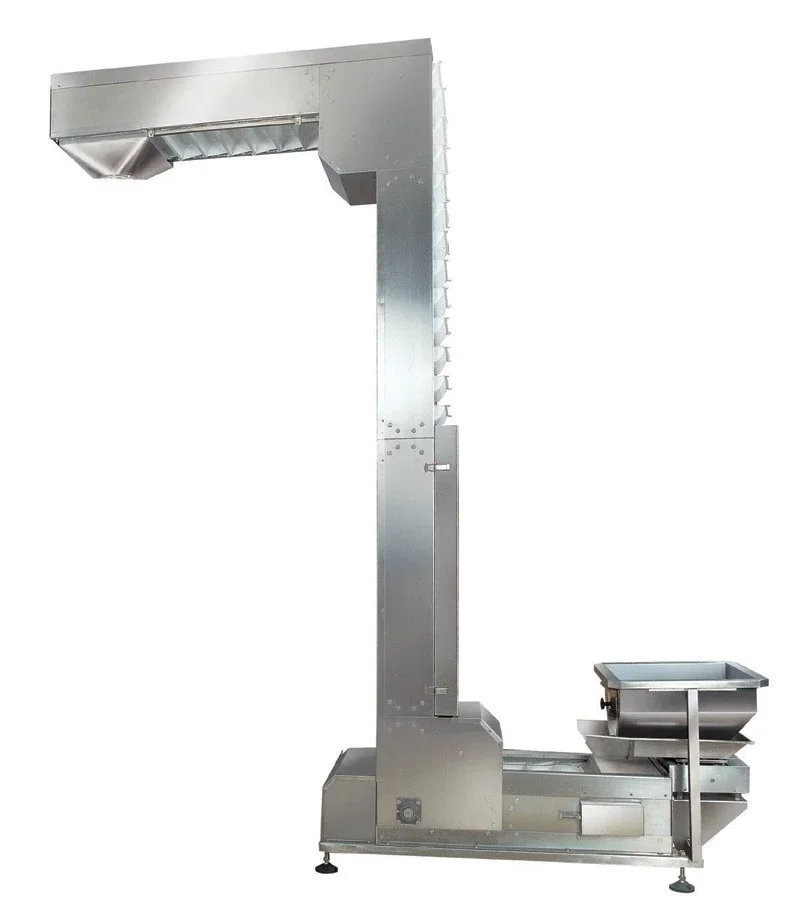

Z Type Bucket Elevator

Z Type Bucket Elevator

Product Description

KY-ZT01 z type bucket elevator is suitable for packaging fluid and bulk granular materials, such as grains, feed, candy, nuts, dried fruits, hardware, medicinal materials, etc.

The Z-type bucket elevator is one of the series of bucket elevators designed and manufactured by our company.

It is named after the shape of the letter Z according to the position of the inlet and outlet; it can be used for multi-point unloading at any position Among them, we have the old model and the new model; the old model equipment is mainly used for lifting heights below 5 meters, and the material types are limited to granular and small lump materials, due to the limitation of the strength of the frame and the tensile strength of the chain.

Therefore, the lifting height should not be too high; the lifting capacity of the old equipment is generally less than 5 cubic meters per hour; the new elevator can not only lift particles and small block materials, but also lift mixed materials with a powder content of less than 25%. The lifting height is 2-40 meters, and the lifting volume is 6-15 cubic meters per hour;

The new Z-type bucket elevator adopts the current more advanced technology.

The older hopper has a flexible design, and on the basis of the original technology, the entire polymer guide rail and chain friction block are added. When it is higher, it is equipped with backstop device and electronic detection device, broken chain protection device, and automatic chain tensioning device, which increase the safety and reliability of the equipment; the lifting chain adopts a precision roller chain, which continues our previous PP in the size of the hopper The characteristics of the plastic hopper, the hopper volume is 1.8L, 2.5L, 3L and 8L optional; combined with anti-corrosion, high temperature resistance and other requirements, our company automatically designed and developed suitable carbon steel, stainless steel and other metal hoppers, making our The hoist has been widely used in the chemical industry, plastics, grain, pet food, puffed food, snack food, renewable resources, hardware and other industries.
