Custom Logo Design Stand up Doy Pack Nose Liquid Bag Spout Packaging for Milk/Coffee/Yoghurt

We insist on ensuring the production of high-quality Tea Bag Packaging Machine, Masala Pouch Packing Machine, Pneumatic Filling Machine with professional manufacturing technology and expert management methods. Customer satisfaction includes not only the satisfaction of product and service recipients, but also the satisfaction of employees and society. Our company's management personnel have many years of experience, can effectively combine the industry's advanced technology and products with its own characteristics to ensure that we can provide customers with high-quality products and affordable prices.

Applicable Bag Shape

flat bag, stand up pouch, kraft paper bag with zipper, Nozzle bag and so on.

Applicable Packing Material

spice powder, coffee powder, flour, milk powder, and so on.

A. The scope and characteristics of the production line

1. Liquid, sauce, granule, powder, etc.

2. Machinery replaces manual packaging, realizes the automation of enterprise product packaging production, improves enterprise production efficiency, and greatly reduces production costs. It can effectively reduce the pollution of materials in the packaging process, and the finished product has good sealing quality and good appearance, which is suitable for large-scale automated packaging of food products.

Work Flow

Work process: manual bagging-automatic bag removal-automatic date printing-automatic bag opening-filling-testing-air pumping and net sealing-line sealing and sealing to form a finished product output.

Main Feature

1. A wide range of packaging: suitable for various states and properties of the liquid sauce body

2. Convenient operation: adopt PLC control, man-machine interface operating system, make the operation intuitionistic and convenient.

3. Convenient adjustment: replacement of varieties will be completed in about ten minutes

4. Suitable for different types of bags: flat bag, stand up pouch, kraft paper bag with zipper and so on.

5. Perfect prevention system, guarantee yield, do not waste bags and materials

6. Stainless steel is used in the packaging part of the machine to ensure the hygiene and safety of the material, in accordance with GMP standard.

7. High degree of automation: in the whole process of weighing and packaging, it is unmanned and automatic alarm of faults occurs.

8. Some imported engineering plastics are used without refueling and reducing the pollution of materials.

9. Adopt oil-free vacuum pump to avoid pollution of production environment

10. The waterproof design can be used to rinse with water, reduce the difficulty of cleaning and improve the service life of the machine.

Main Parameters

Item	doypack packaging machine
Packing type	Flat bag, stand up pouch, kraft paper bag with zipper
Packaging material	PP, CPP, BOPP, and so on.
Bag size	Bag width: 100-250 mm Bag length: 150-400 mm
Weighing range	10-2000g
Packing speed	20-55 bags/min
Gas consumption	0.3m3
Packaging accuracy	<+-1%
Power supply	2.2kw, AC380V, 50Hz
Machine dimension	1530*1350*1450mm
Weight	1000kg
Optional	Coding device, Zipper opening device, Bag shaking device, Bag poking device, Exhaust device, Horizontal bag loading

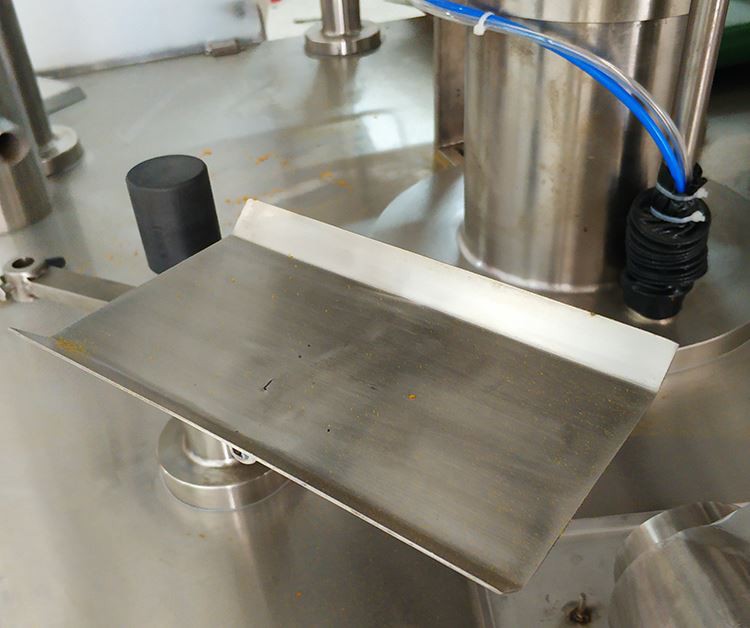

Details Images

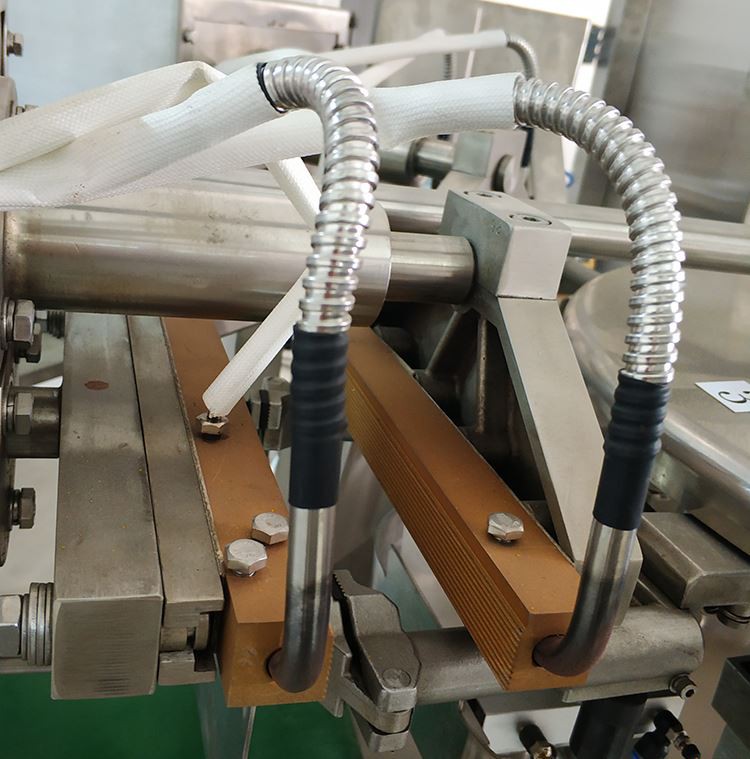

Sealing Bag

Coding Date

Giving Bag

Suction Bag

8 Stations

Down Vibration

Opening Bag

Our rigorous quality management, mature and excellent technology, and advanced and complete test methods are reliable guarantees of the quality of our Custom Logo Design Stand up Doy Pack Nose Liquid Bag Spout Packaging for Milk/Coffee/Yoghurt. We insist that there is no best, only better, to constantly spur ourselves, so that we have been in the forefront of the industry. We promote the company's cultural development through the self-development and achievements of all our employees on a global scale.
