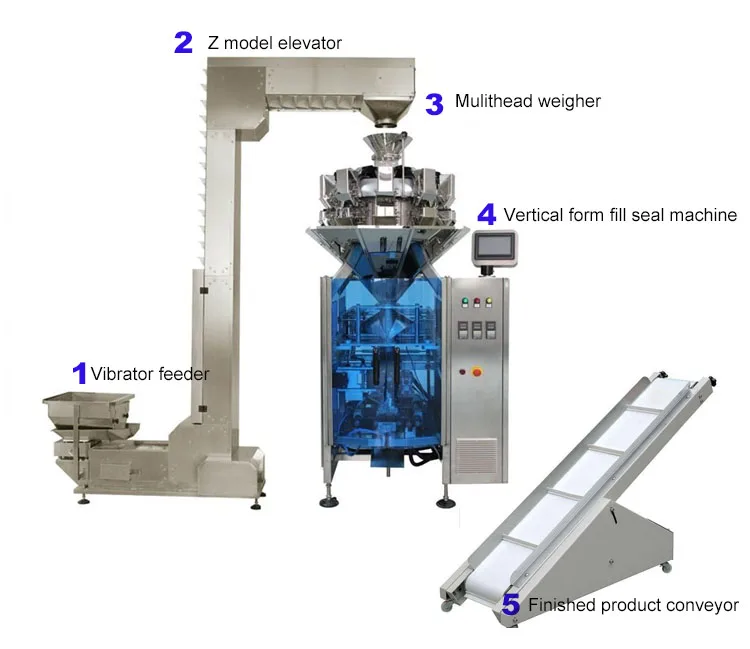

Z Conveyor

The Z-type bucket elevator is equipped with a torsion protector as standard. When a metal hopper is used, the malfunctioning bucket machine will not rotate, and the alarm light will be on at the same time to avoid accidents, safe and reliable; the bucket type elevator is in a closed shell , The material is conveyed through the hopper suspended on the chain. It can be combined horizontally, vertically and horizontally. Single-point or multi-point feeding can be used, and single-point or multi-point unloading can be accomplished through a specially designed unloading device. It is fully enclosed, no leakage, no pollution. It is suitable for conveying various powdery materials and granular materials. It is better to convey non-sticky materials. The big advantage of this equipment is that the composition is flexible, the damage rate to the material is low, and the production of defective products can be prevented.

The structure of the z-type bucket elevator is similar to the traditional vertical bucket elevator. It adopts a chain bucket for reclaiming and conveying. The feeding and discharging are changed. The upper and lower horizontal sections of the conveying part (the shortest 1.5 meters) are added, which is convenient The horizontal distance of the customer can reduce the customer's repurchase of other horizontal conveyors. In the horizontal section, the z-type bucket elevator can realize multi-point blanking. The number and location of the blanking opening can be determined according to the actual needs of the customer.

Hopper: stainless steel hopper-carbon steel hopper-food plastic hopper.

Drive: explosion-proof reducer, ordinary reducer.

Sprocket: alloy steel sprocket—stainless steel sprocket.

Chain: alloy steel chain-stainless steel chain.

Control: manual start and stop, automatic start and stop, frequency conversion control.

Others: The whole machine is explosion-proof, built-in forced ventilation system, automatic hopper cleaning system, automatic refueling system.
