Spices Packing Machine

Spices Packing Machine

Product Description

The powder mixing and filling line consists of 4 parts: a mixer, a screw elevator, a powder packaging machine, and a conveyor belt. It can realize uniform mixing and quantitative filling of bottled powder. It is mainly suitable for small-size bottled solutions of powdery and micro-particle materials, Improve work efficiency and save labor intensity.

A. Mixer

Feature

1. The RV reducer drives the motor to rotate, and the speed is adjustable.

2. The whole machine is made of stainless steel, which complies with food safety production regulations.

3 The material barrel and spiral belt are made of stainless steel, which is easy to clean and avoid corrosion.

4. The gear reducer is wear-resistant and durable, with long life and low noise.

5. Two-way S-shaped ribbon, mixing materials quickly and evenly.

6. An observation window can be opened on the top, which is easy to observe the mixing situation.

Technical Parameter

Power supply voltage: 380V/50Hz

Power: 4KW

Measurement range: 300L/400L/500L/700L

Bare metal weight: 350kg

Spice packing machine

Product Description

Spice packing machine is a new type of packaging machine developed by our company on the basis of KY-F01S. It uses the most cutting-edge all-digital AC servo system to replace the traditional stepper motor control method, and the advanced touch screen replaces the original digital tube display and ordinary button type. The keyboard uses PLC to replace the original industrial single-chip microcomputer, and the performance of the whole machine is more excellent; this machine is suitable for the packaging of powder materials, such as: flour, milk powder, pesticides, veterinary drugs, dyes, chemical agents, food seasonings, additives, etc.

Features

1. Full Chinese menu. Simpler operation

2. PLC control, low failure rate and higher reliability

3. Use digital AC servo motor to control the feeding, with high control precision

4. Large torque

5. Faster speed: the maximum speed of stepper motors is generally between 300-900PRM, while the maximum speed of AC servo motors is generally between 600PRM or 2000PRM

6. Stirring is made by Taiwan-made maintenance-free geared motor, with low noise, long life, and lifetime maintenance-free.

7. Working parameters can be stored for later use; avoiding re-calibration when changing materials in cycles.

Technical Parameter

Screw conveyor

Product Description

Screw conveyors can reduce dust, reduce labor intensity, and improve labor efficiency. According to the material, it can be divided into two types: stainless steel and carbon steel.

Features

The feeding motor and vibration motor are controlled separately

The silo is equipped with a vibrating motor for smoother loading

The lower end of the material pipe is equipped with a discharge door, which can be turned over when the spiral is cut, and it is convenient to discharge and clean.

Technical Parameter

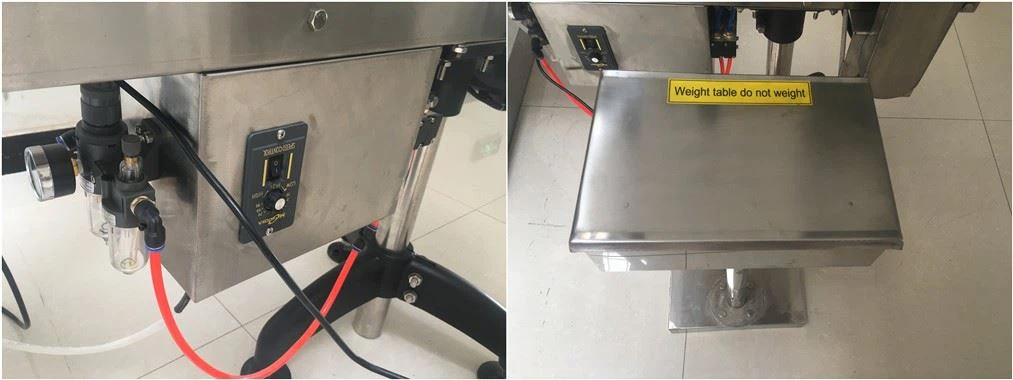

Details Image
